Video Pattern Generator
Full interface coverage: HDMI / DP / VGA / AV / Component / SCART — for TV and monitor mainboard & whole-set production-line testing, aging and white balance adjustment
SVG-2201Multi-Format Video Signal Generator
Card-based design with 6 card slots. Nine types of optional cards — HDMI 2.1 (48Gbps 8K), DP 1.4, HDMI 2.0, DP 1.2, TYPE-C (PD 3.0), USB 3.0, electronic load, ANALOG, and CVBS & ETH. Full touch operation on a 7-inch capacitive touchscreen.
View Details →

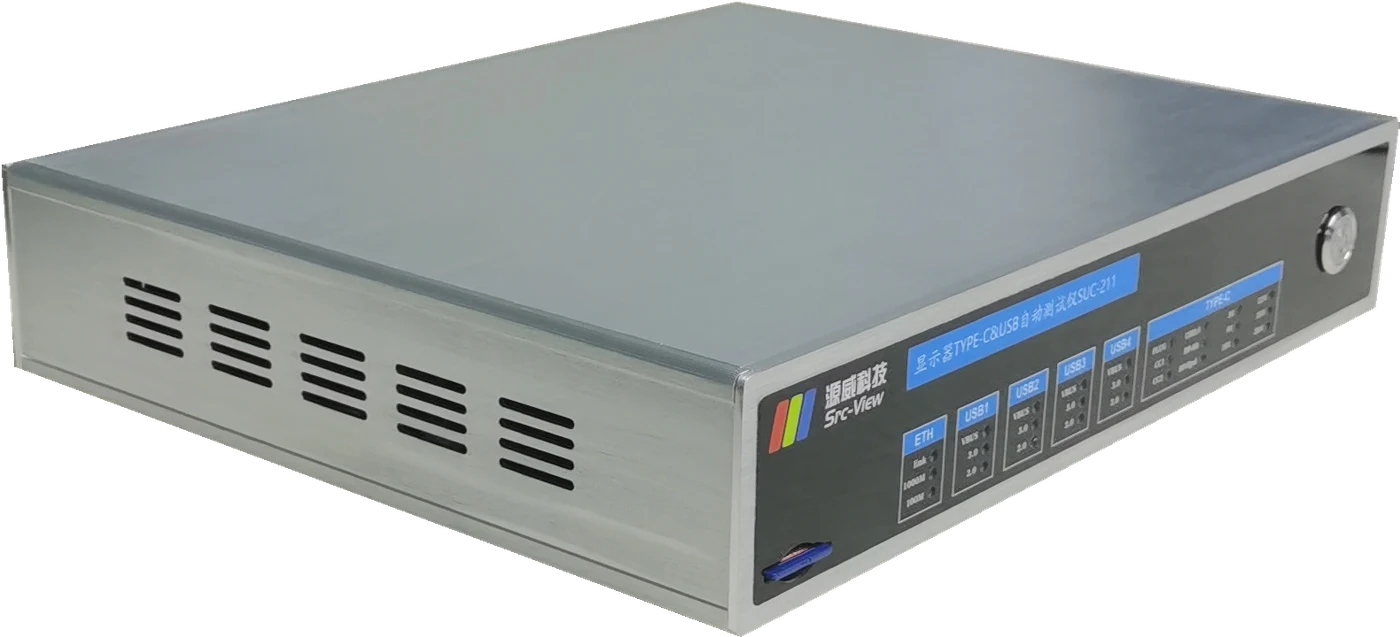

SUC-211Monitor TYPE-C & USB Automated Tester
Full-featured TYPE-C testing (PD 3.0 power 5V–20V, DP-Alt up to 4K2K 60Hz, USB 3.0 throughput), 4-channel USB 3.0 and 1000M LAN throughput testing, dual-sided auto-flip, full interface protection.
View Details →

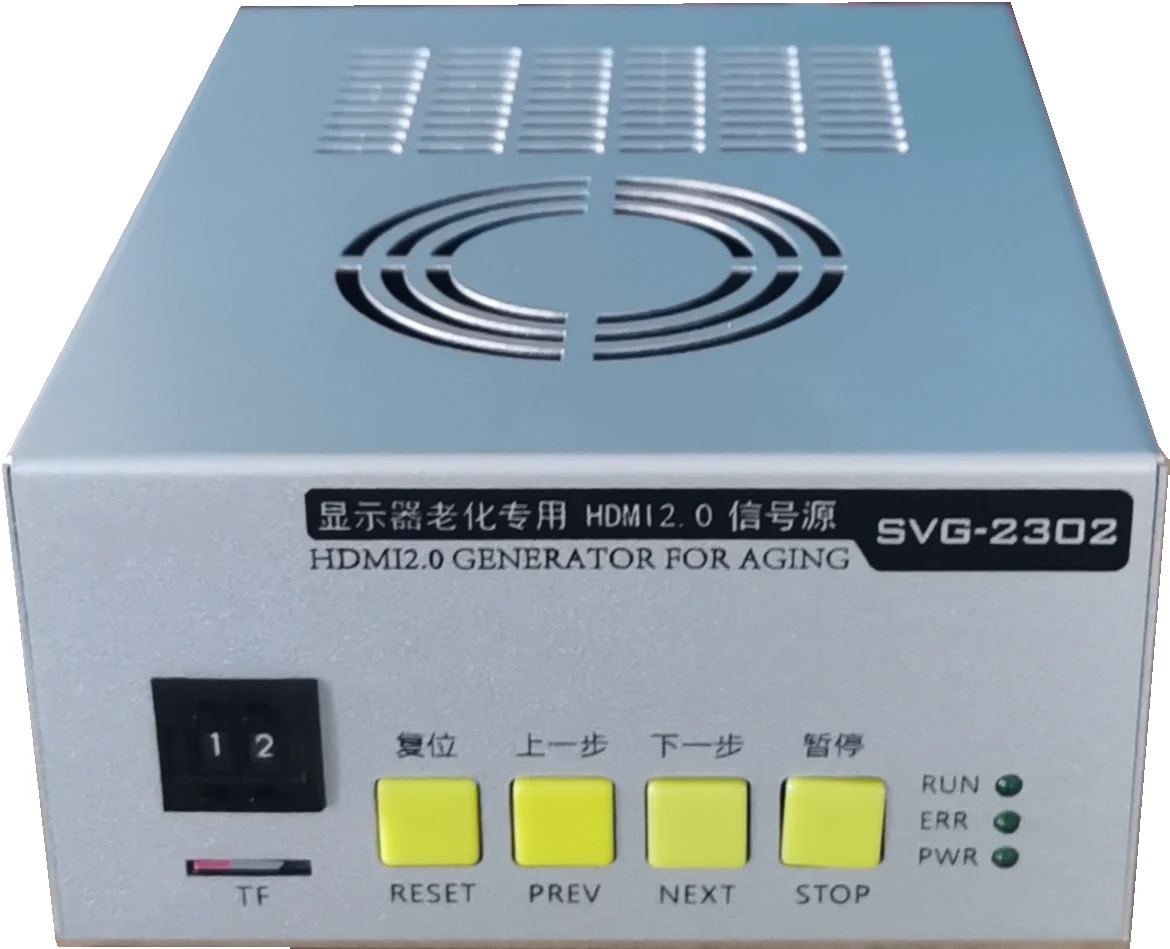

SVG-2302HDMI 2.0 Signal Source for Monitor Aging
2 synchronized HDMI 2.0 outputs up to 4K2K 60Hz, 100 sets × 32-step aging programs, auto-resume after power loss, 54+ built-in test patterns, continuous operation in 60°C aging rooms.
View Details →

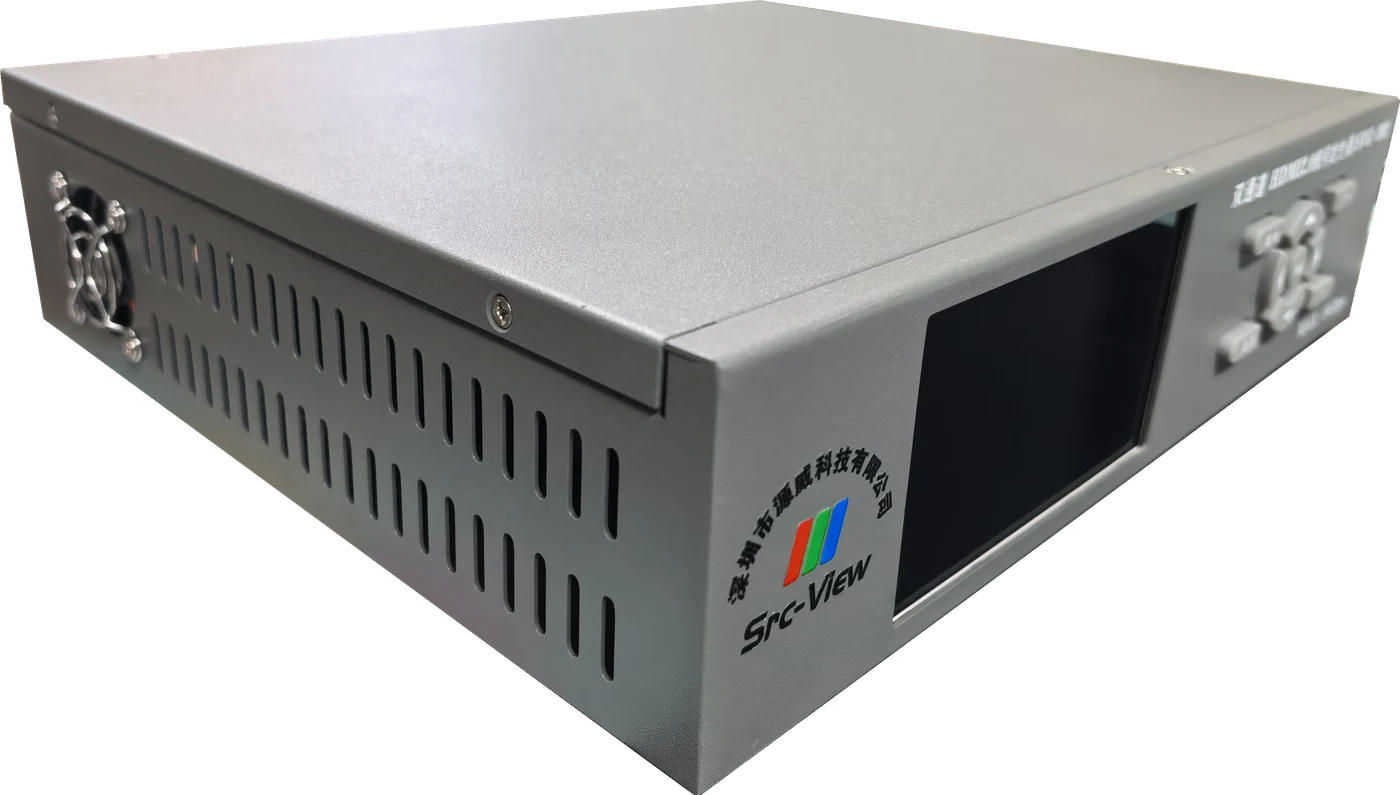

SVG-202Dual-Channel HDMI 2.0 Signal Generator
2 fully independent HDMI 2.0 outputs up to 4K2K RGB444 60Hz at 18Gbps, 32+ built-in test patterns, HDCP / CEC / ARC / EDID testing and RS232 remote control.
View Details →

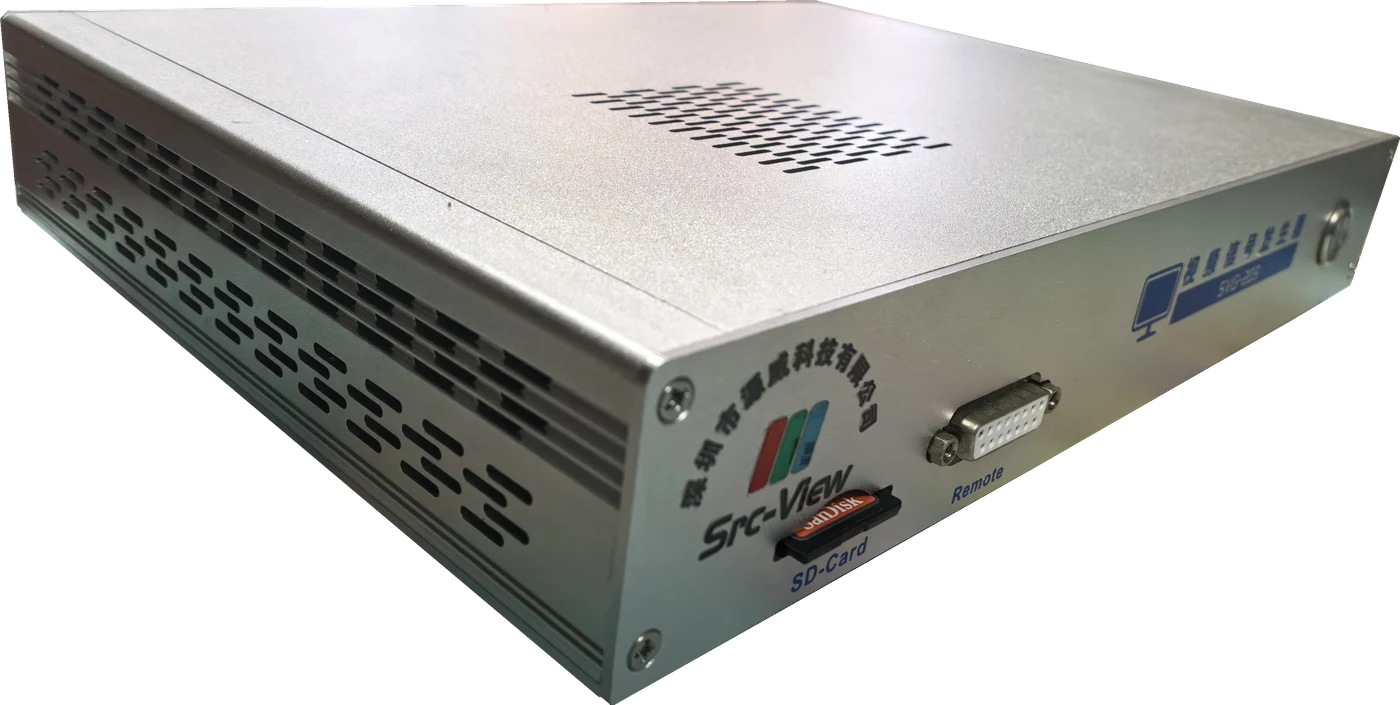

SVG-203Video Signal Generator
Three fully independent outputs — HDMI 2.0, DP 1.2 and VGA — up to 4K2K RGB444 60Hz, 40+ built-in test patterns, with Editor software and RMT-20 controller.
View Details →

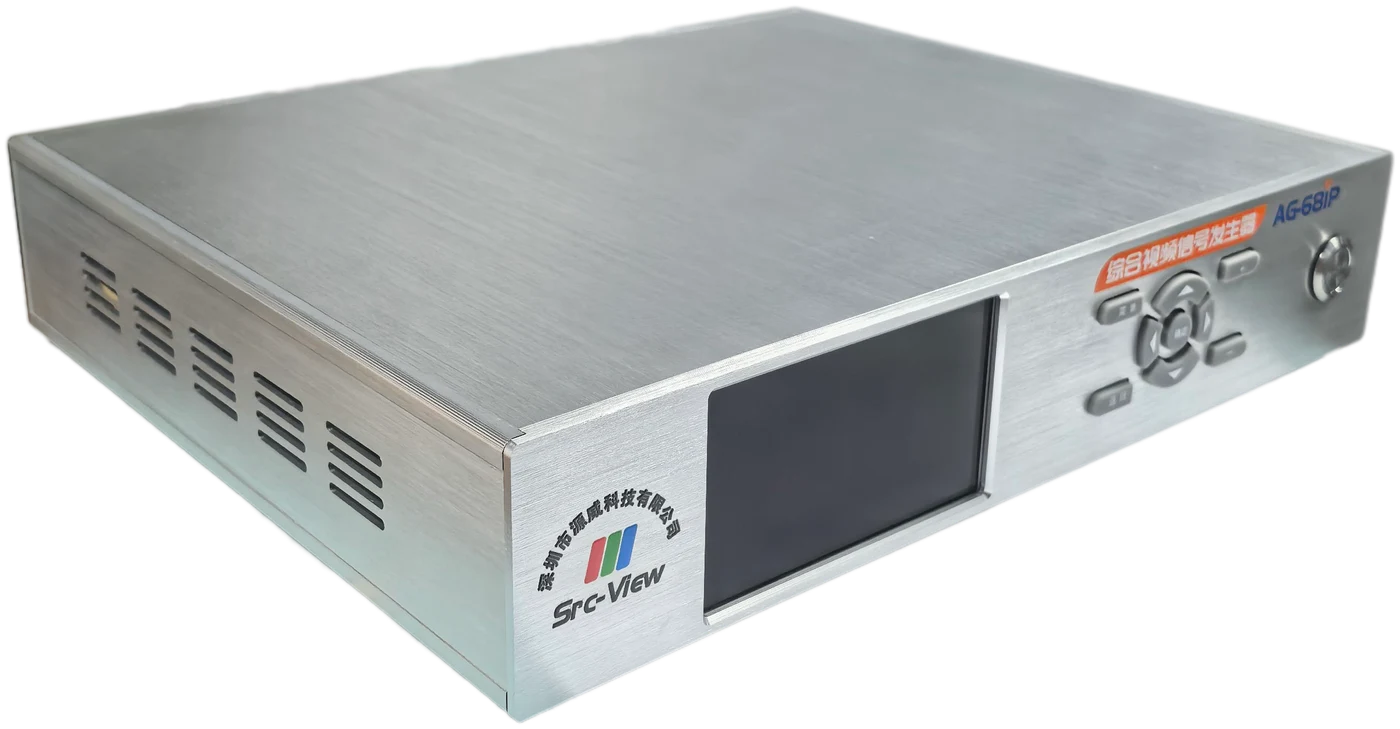

AG-681PMulti-Format Video Signal Generator
Fully independent outputs: 2×AV, YPbPr, SCART, VGA, 3×HDMI — 8 signal channels with no mutual interference, covering all audio/video interfaces of a TV set.
View Details →

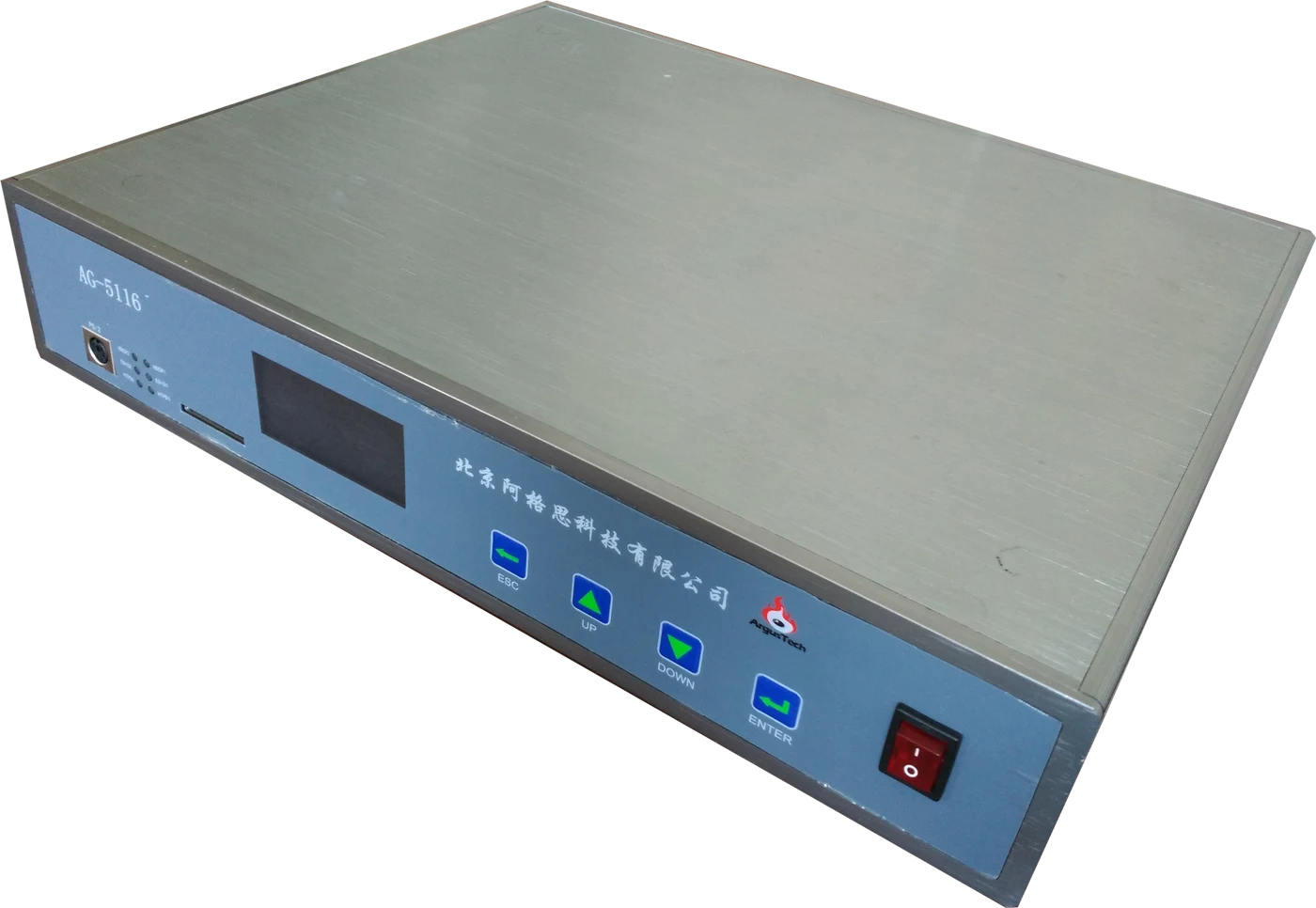

AG-5116HDMI 2.0 Ultra-HD Image Signal Source
2 independent HDMI outputs up to 4K2K 2160P 60Hz, HDCP 1.4 / 2.2 verification, 24+ built-in test patterns — a classic model for TV and monitor HDMI interface testing.
View Details →LCM Pattern Generator
LVDS / V-by-One / eDP LCM pattern generators for module & T-CON board production-line pattern testing and Flicker adjustment
SVG-24018K LCM Signal Generator
Card-based design with optional LVDS / LVDS-P / V-by-One / eDP cards, up to 7680×4320 output, supports 360Hz high-refresh esports panels — a domestic replacement for imported instruments.
View Details →

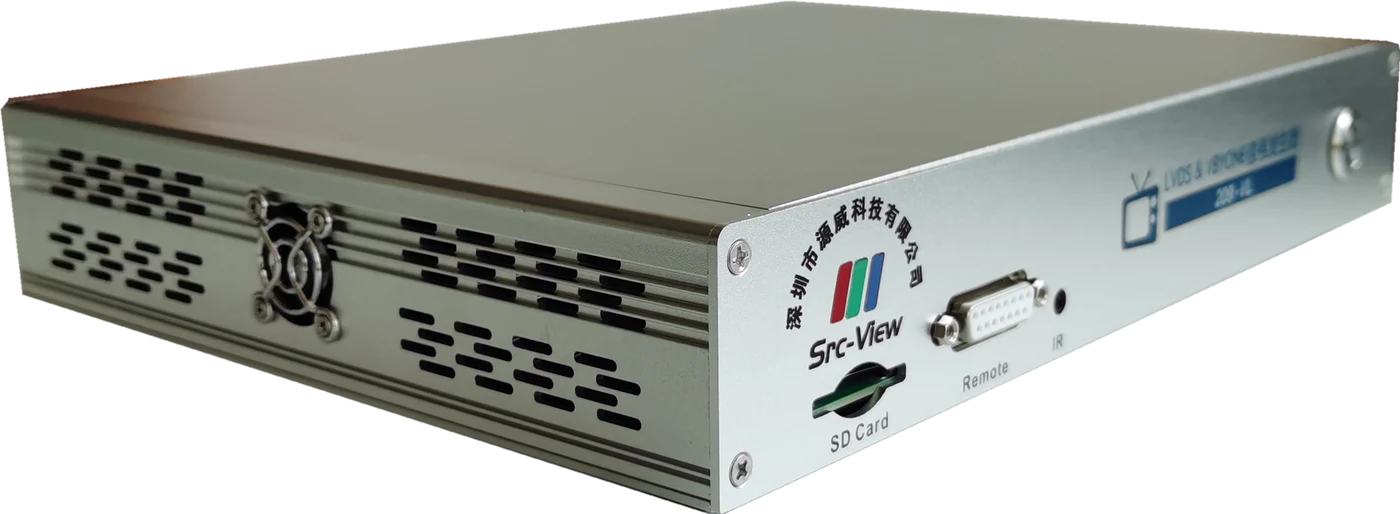

209-VLLCM Signal Generator
New Flicker (VCOM) adjustment, standard split-type RMT-20 control box, compatible with LVDS and V-by-One LCD panels, supports 4K@120Hz output.
View Details →

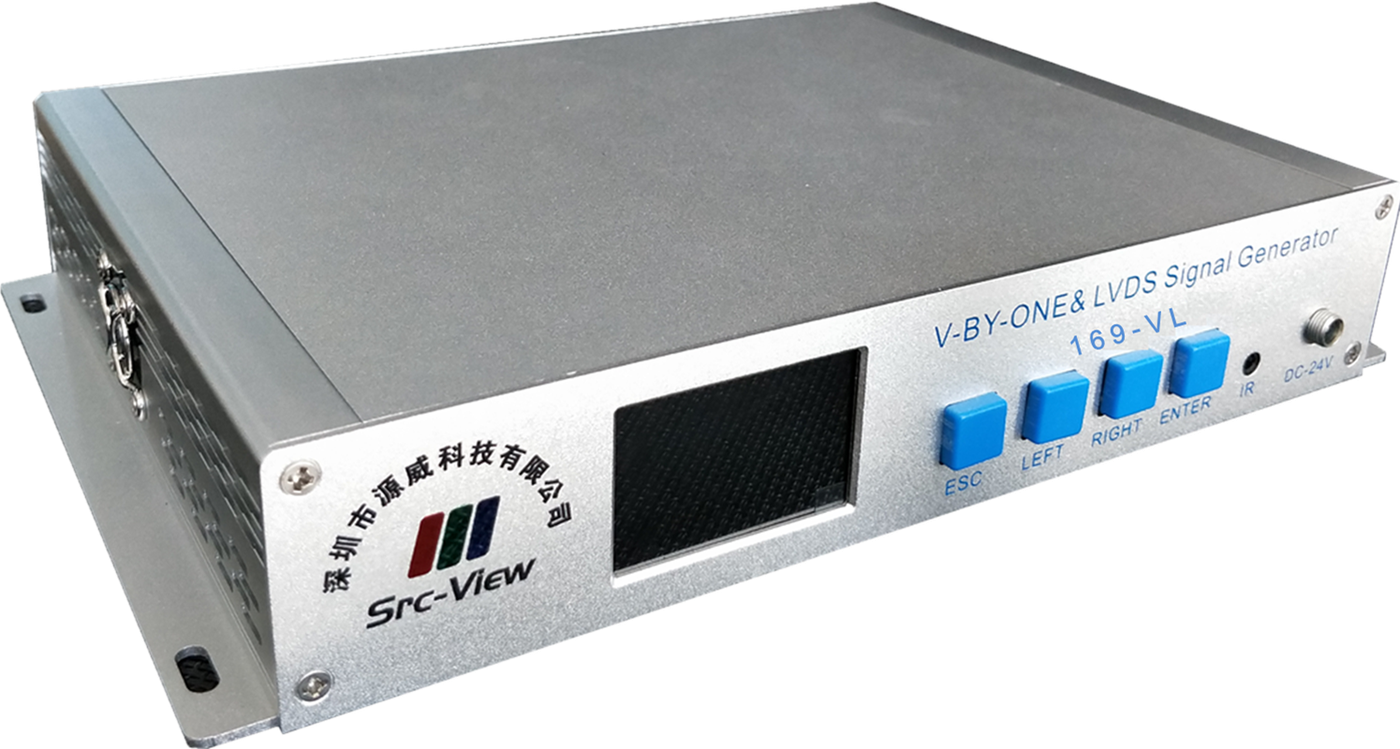

169-VLLCM Signal Generator
Compatible with LVDS and V-by-One LCD panels, 4K output with multiple built-in test patterns — widely used for pattern testing on LCM production lines.
View Details →

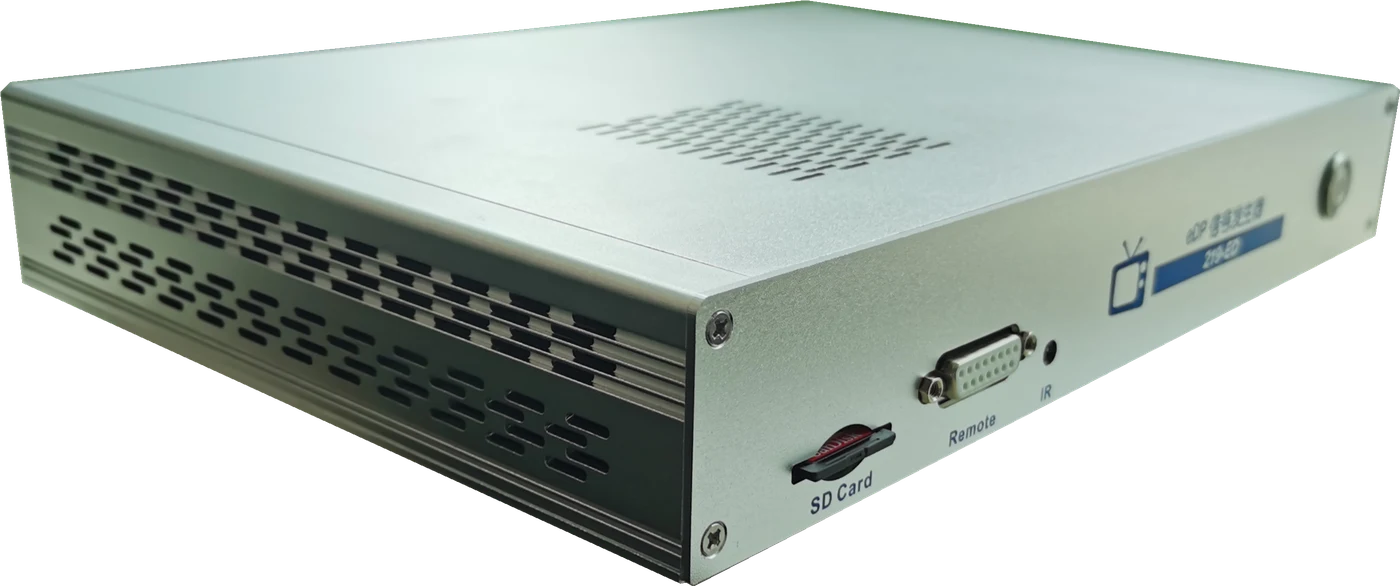

219-EDeDP Signal Generator
Up to 8-lane eDP output, supports 4K@120Hz / 2K@240Hz high refresh rates and Flicker adjustment — for pattern testing of monitor, notebook and other eDP module production lines.
View Details →

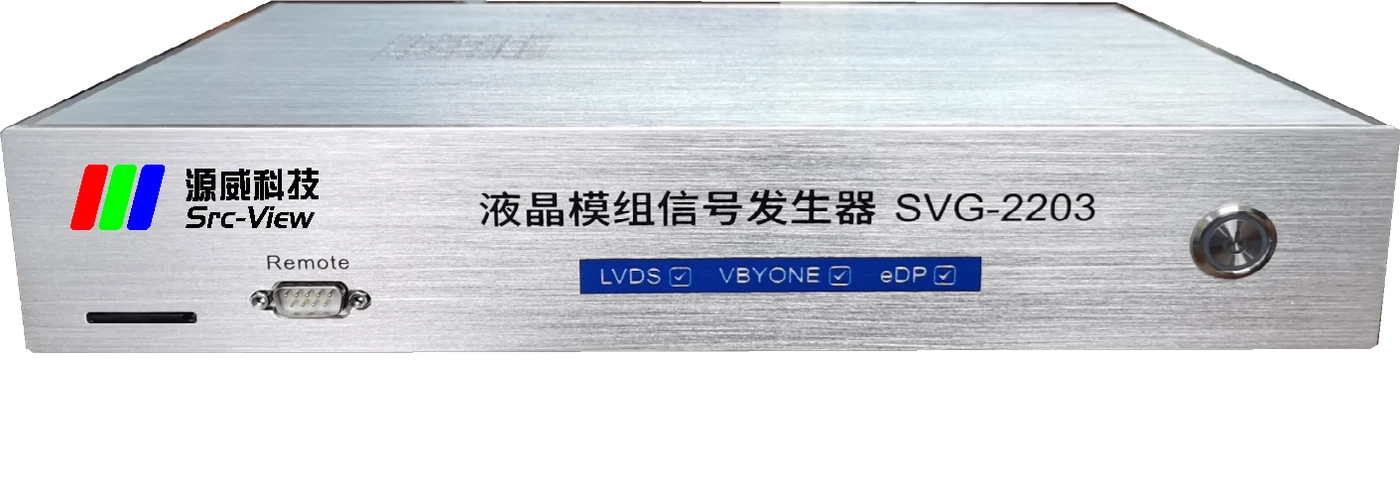

SVG-2203LCM Signal Generator
One instrument integrating 16-lane V-by-One, 4-channel LVDS and 8-lane eDP outputs, 96+ built-in test patterns, Flicker adjustment — covering TV, monitor and notebook module production lines.
View Details →

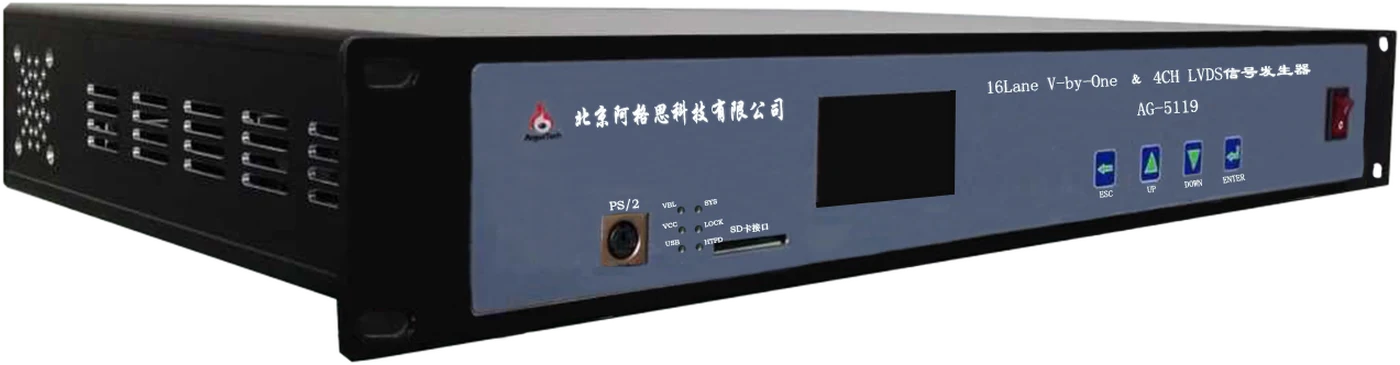

AG-5119V-by-One Signal Generator
Up to 16-lane V-by-One output, compatible with 4-channel LVDS, 99 sets of module parameters with up to 32 test patterns each — a classic model for LCD panel and T-CON board testing.
View Details →Automated Test System
FCT functional test systems — one fixture tests two boards simultaneously, simulating manual testing with automatic PC-based result judgment, for TV mainboard and T-CON board production-line automated testing
AR-306TV Mainboard Automated Test System
Ordinary monitors replace fixture displays; automatic capture of LVDS image / VIDEO / AUDIO signals; IR / key / light-sensor function simulation; fully automatic testing per test procedures — one machine equals two operators.
View Details →
AR-316T-CON Board Automated Test System
Signal generator provides T-CON board input; mini-LVDS image capture plus analog/digital signal and EEPROM measurement; test starts automatically when the fixture is loaded; all test data saved automatically.
View Details →
