2 Independent HDMI Outputs | 4K2K 60Hz | HDCP 1.4 / 2.2 Verification
The AG-5116 is a dual-channel HDMI 2.0 signal generator outputting up to 4K2K 2160P 60Hz RGB444 / YUV420 images, with fully independent parameter settings per channel. It supports HDCP 1.4 / HDCP 2.2 / AUTO and EDID verification with real-time OSD status display; 24+ built-in algorithmic test patterns, expandable with custom BMP images via SD card — for HDMI 2.0 / HDMI 1.x interface testing of TVs and monitors.
A classic model for TV and monitor HDMI interface production-line testing
2 HDMI signal outputs (HDMI1 / HDMI2) — video format, test pattern, HDCP, audio and other parameters set separately; test two whole sets or two mainboards at once, doubling efficiency.
TMDS clock up to 600MHz (18Gbps), supporting 2160P 60Hz RGB444 / YUV420 ultra-HD output, backward compatible with 1080P, 720P, 480P and other HDMI 1.x formats, 8-bit / 10-bit color depth.
Supports HDCP 1.4, HDCP 2.2, simultaneous 1.4 & 2.2 verification and AUTO mode, plus EDID verification; results overlay directly on the output screen via OSD — white / green / red at a glance.
24+ common test patterns generated in real time by built-in algorithms; users can place 24-bit BMP images in the SD card "ExterImg" folder — auto-copied to the 2GB internal memory at power-on and callable right after the built-in patterns.
48KHz sine wave audio, frequency adjustable 0–20KHz in 0.1KHz steps, L/R channel frequencies set independently; simultaneous or alternating L/R output modes; 4-step volume adjustment.
HDMI interfaces have dedicated protection chips, withstanding frequent plug/unplug; USB and RS232 ports reserved for integration into automated test equipment; alarm output interfaces for line integration.
Detailed Electrical and Functional Parameters
| Signal Channels | HDMI1 × 1HDMI2 × 12 HDMI signal outputs with fully independent parameter settings |
|---|---|
| HDMI Protocol | Supports HDMI 1.4 and HDMI 2.0; TMDS clock up to 600MHz (18Gbps) |
| Video Formats | 2160P 60Hz RGB4442160P 60Hz YUV4202160P 50Hz RGB4442160P 50Hz YUV4202160P 30 / 25 / 24Hz1080P 60 / 50Hz1080I 60 / 50Hz720P 60Hz576P / 576I 50Hz480P / 480I 60Hz Color depth: 8-bit (all formats), 10-bit (1080P and below) |
| HDCP Verification | HDCP1.4HDCP2.2Simultaneous HDCP 1.4 & 2.2 verificationAUTO — automatically detects the receiver’s highest versionEDID verification also supported |
| OSD Display | Video format, L/R channel frequencies and HDCP 1.4 / HDCP 2.2 / EDID verification status overlay the HDMI output in real time; status shown in white (OFF) / green (OK) / red (NG) |
| Audio | Sine wave, 48KHz sample rate, frequency adjustable 0–20KHz (0.1KHz steps), L/R frequencies set independently; simultaneous or alternating L/R output; volume 0% / 25% / 50% / 100% |
| Test Patterns | 24+ test patterns generated by built-in algorithms (solids, grayscale, color bars, gradients, grids, etc.); SD card external patterns supported: place 24-bit BMPs in the SD card root "ExterImg" folder — auto-copied to the 2GB DDR3 internal memory at power-on (total size under 2GB, output at native resolution, no auto-scaling) |
| Communication Port | USB and RS232 ports reserved for integration into automated test equipment or other expansions; alarm-1 / alarm-2 interfaces on the rear panel |
| Interface Protection | HDMI interfaces use dedicated HDMI protection chips, preventing damage to the interface chips |
| Human-Machine Interface | Front panel: OLED display + ESC / UP / DOWN / ENTER buttons; parameter settings auto-saved and restored at next power-on; PS/2 port; SD card slot (built-in patterns work without a card); dual-channel HTPD / EDID / HDCP status LEDs |
| Unit Specifications | Main unit 350 × 280 × 67 mm (W × D × H), approx. 3 kg; rated input 220Vac 50/60Hz (200–240Vac); guaranteed spec temperature +5°C to +35°C, humidity 20%–80% RH (non-condensing) |
| Standard Configuration | 1 main unit, 1 220V power cord |

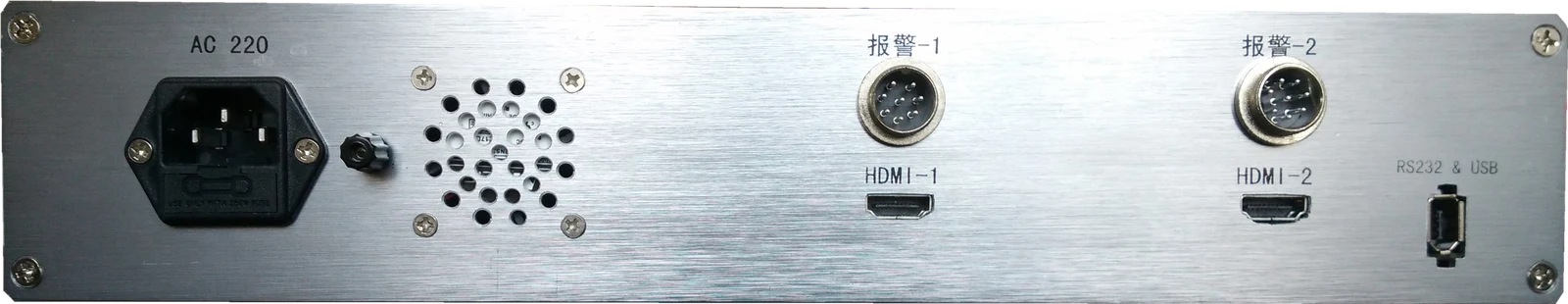

Front and Rear Interface Layout at a Glance

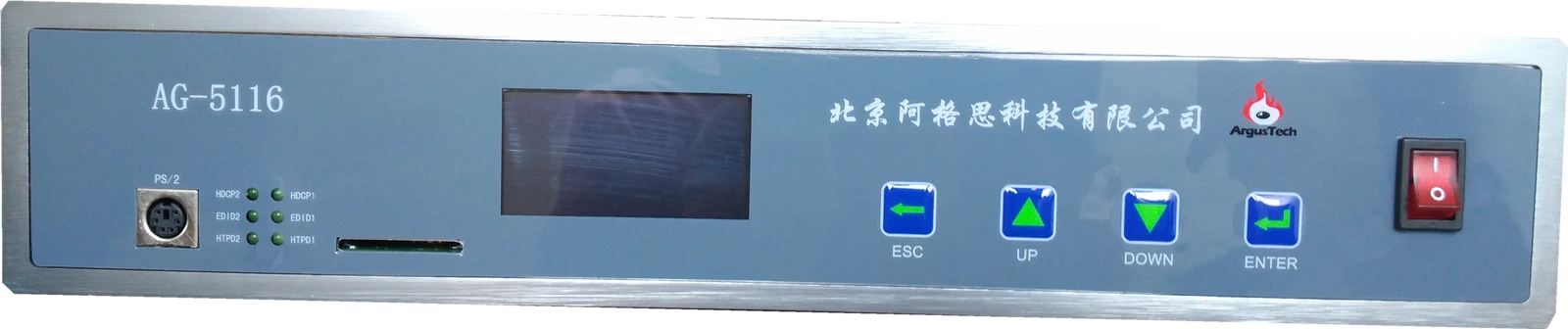

The front OLED shows the current channel (CH), video format (VDO), HDCP mode and test pattern number in real time; three LED groups — HDCP1/2, EDID1/2, HTPD1/2 — indicate connection, EDID and HDCP verification status of the two HDMI channels; lit means OK, so line operators can judge results without entering menus.

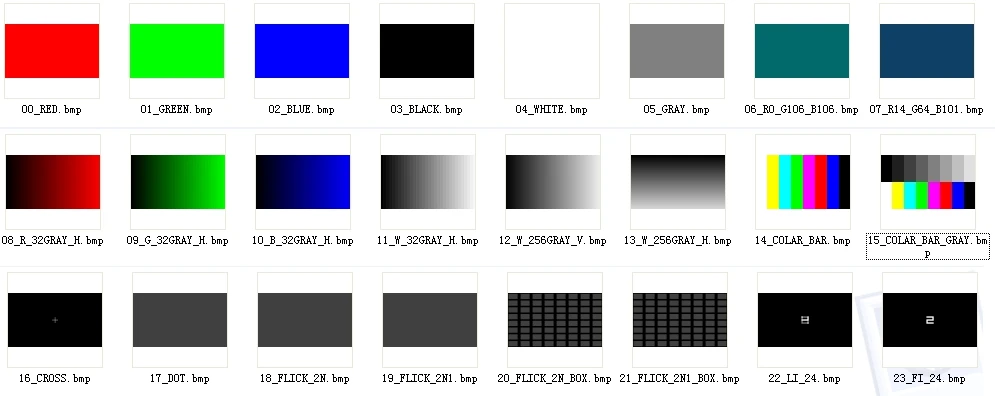

24+ built-in algorithmic test patterns, plus custom BMP images via SD card
Built-in red, green, blue, black and white solids, grayscale, color bars, gradients, grids, checkerboard and more — 24+ common test patterns, all computed in real time by built-in algorithms; custom 24-bit BMP images placed in the SD card root "ExterImg" folder are auto-copied to the 2GB internal memory at power-on and selectable in the "IMG" parameter right after the built-in patterns — meeting whole-set image inspection, defect-pixel detection, color and white-balance adjustment needs on the line.
The AG-5116 is discontinued; the replacement is SVG-202 Dual-Channel HDMI 2.0 Signal Generator. Existing users needing manuals, spare parts or technical support are welcome to contact us anytime.
