2 Synchronized HDMI Outputs | 100 Aging Programs | Power-Loss Resume

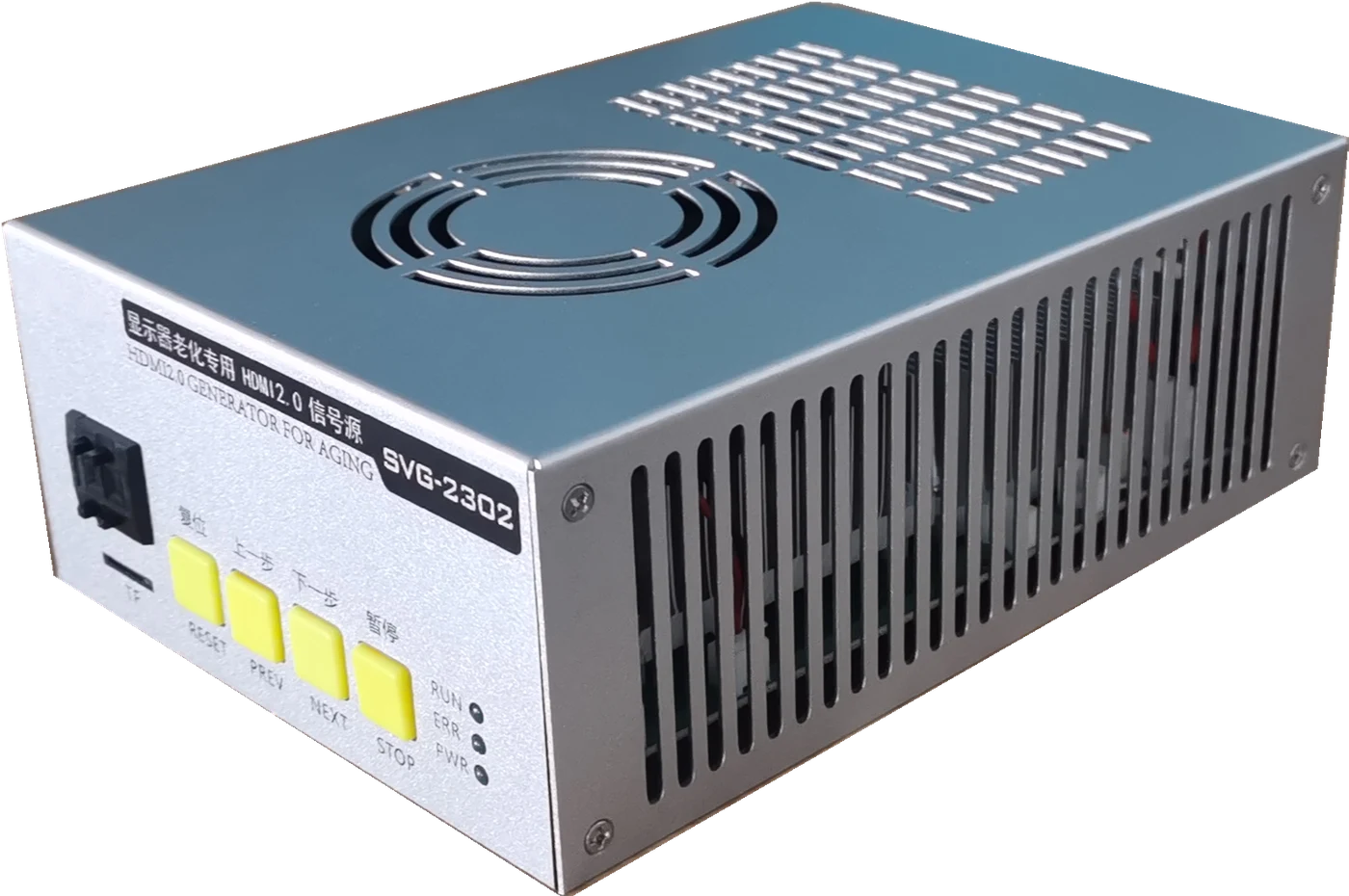

The SVG-2302 is designed for HDMI interface aging of TVs and monitors, running continuously in aging rooms at up to 60°C ambient temperature and 85% humidity. 2 synchronized HDMI 2.0 outputs up to 3840×2160P60. With the PC-side aging program editing software: up to 100 programs, 32 steps each, every step specifying output video, audio, pattern and duration.
An HDMI aging signal source purpose-built for monitor / TV aging rooms
2 HDMI outputs with identical, strictly synchronized formats up to 3840×2160P60 — burn in two whole sets at once; max pixel clock 600MHz, 18Gbps bandwidth; HDMI interfaces have built-in protection circuits and support hot-plugging.
Edit aging programs in PC software — up to 100 sets, 32 steps each, every step independently specifying video format, audio, pattern and duration; program 00 automatically skips unsupported formats based on the monitor’s EDID.
After an unexpected power loss during aging, the signal source automatically resumes the program from where it stopped upon power recovery — no manual intervention, no lost aging records.
Designed for aging room environments, running continuously at up to 60°C and 85% humidity; large heat-dissipation grilles ensure 24/7 uninterrupted aging.
54+ built-in test patterns including solid colors, grayscale, color bars, checkerboard and composite patterns; TF card expands with user BMP images and WAV audio (48KHz / 16-bit / stereo); sine wave (100Hz–20KHz) and sweep tone also available.
PC editing software with Chinese/English interface; visual editing of pattern combinations (100 sets × 16 images) and aging programs, one-click export to TF card; rear DEBUG serial port (RS232, 115200 8N1) for real-time runtime info.
Detailed Electrical and Functional Parameters
| Signal Channels | 2 HDMI outputs with identical, synchronized formats |
|---|---|
| HDMI Version | HDMI 2.0; max pixel clock 600MHz, max bandwidth 18Gbps |
| Video Formats | 3840×2160P603840×2160P504096×2160P602160P 30 / 25 / 24Hz2160P 50 / 60Hz YUV4202560×1440P 60 / 75 / 120 / 144Hz1080P 60 / 50Hz1080P high-refresh 100–240Hz1080I 60 / 50Hz720P 60 / 50Hz480P / 576PVarious VESA formats The above formats are supported by default; other formats can be added via Timing.ini |
| Audio Output | Sine wave (100Hz–20KHz), sweep tone, WAV audio files (48KHz / 16-bit / stereo, on TF card) |
| Test Patterns | 54+ built-in test patterns (solid colors, grayscale, color bars, checkerboard, composite, Flicker, etc.); user-editable RGB solid patterns; 24-bit custom BMP images via TF card |
| Aging Programs | Up to 100 aging programs with 32 steps each, every step specifying output video, audio, pattern and duration; up to 100 pattern combinations of 16 images each; program 00 auto-skips unsupported video-format steps based on the connected monitor’s EDID, while programs 01–99 strictly follow the edited steps |
| Power-Loss Resume | Automatically resumes the aging program from its last state after power recovery |
| Interface Protection | 2 HDMI output interfaces with built-in protection circuits, hot-pluggable |
| Communication Port | DEBUG serial port (RS232, 115200 baud, 8 data bits / 1 stop bit / no parity) for connecting a PC to view device runtime info |
| Human-Machine Interface | Front panel: 2-digit dial switch (program selection), TF card slot, four buttons (reset / previous / next / pause), three status LEDs (RUN / ERR / PWR) |
| Unit Specifications | Main unit 250 × 138 × 68 mm, approx. 1.265 kg (with packaging); power input 12V/5A (Mean Well adapter included); operating temperature +5°C to +60°C, humidity 20%–85% RH (non-condensing); indoor use, below 2000m altitude |
| Standard Configuration | 1 main unit, 1 Mean Well GSM60A12-P1J power adapter, 1 national-standard 3-pin power cord, 1 16GB TF card |

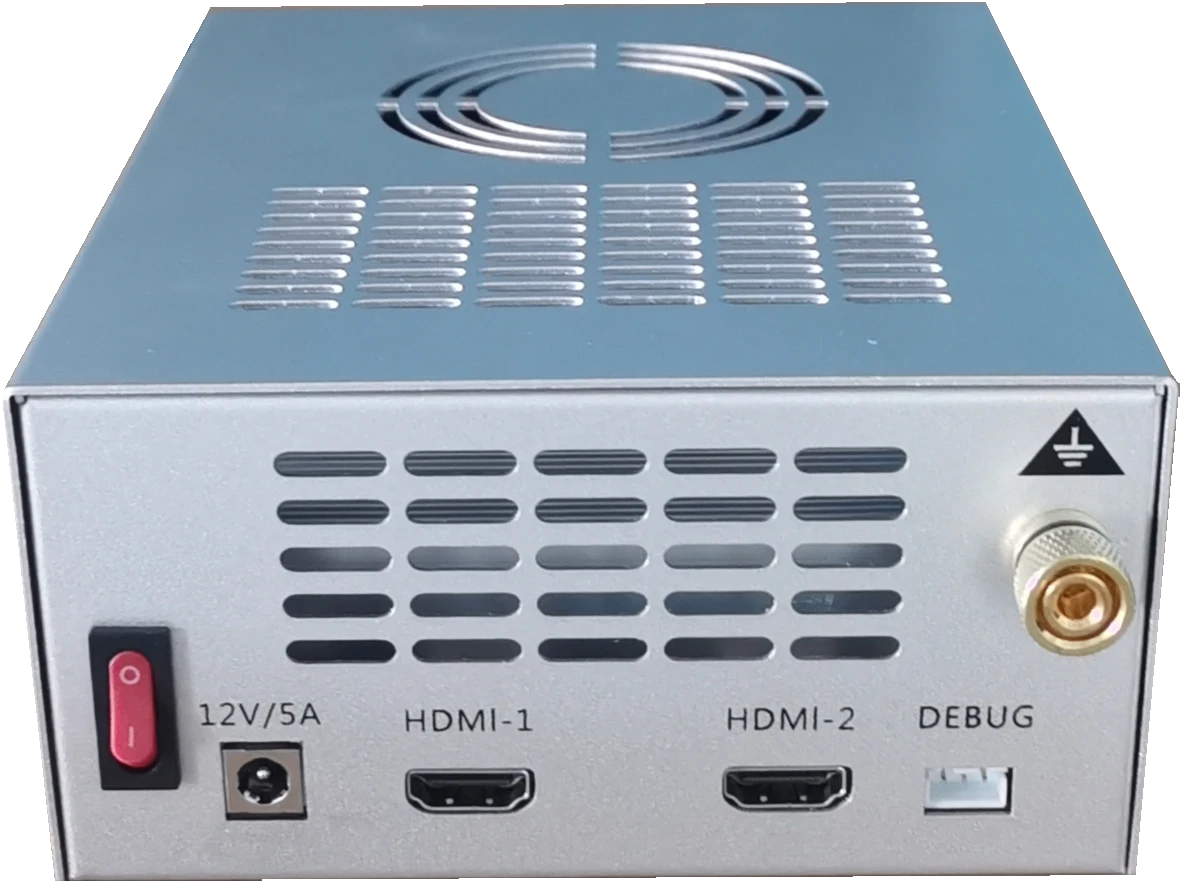

Front and Rear Interface Layout at a Glance

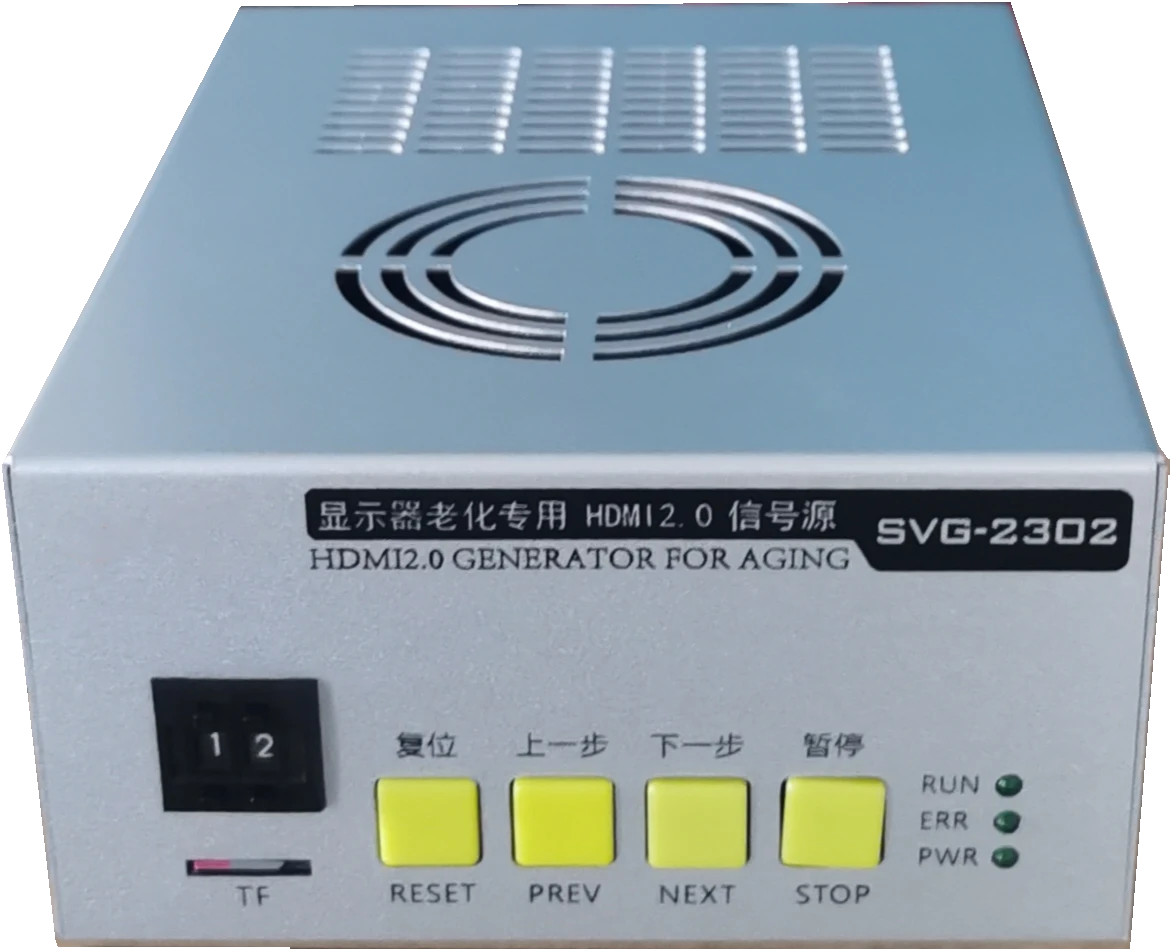

Select the aging program with the dial switch (read once at power-on or reset), and the signal source executes it step by step automatically; the RUN LED blinks during aging, stays lit when paused, stays off when idle, and a lit ERR LED indicates a program error — aging room operators can judge each unit’s status at a glance, no PC needed.
Bundled PC editing software with Chinese/English interface. Aging programs and pattern combinations are all visually edited, then exported to a TF card with one click — plug it into the main unit and run; no disassembly needed to change programs on the line.

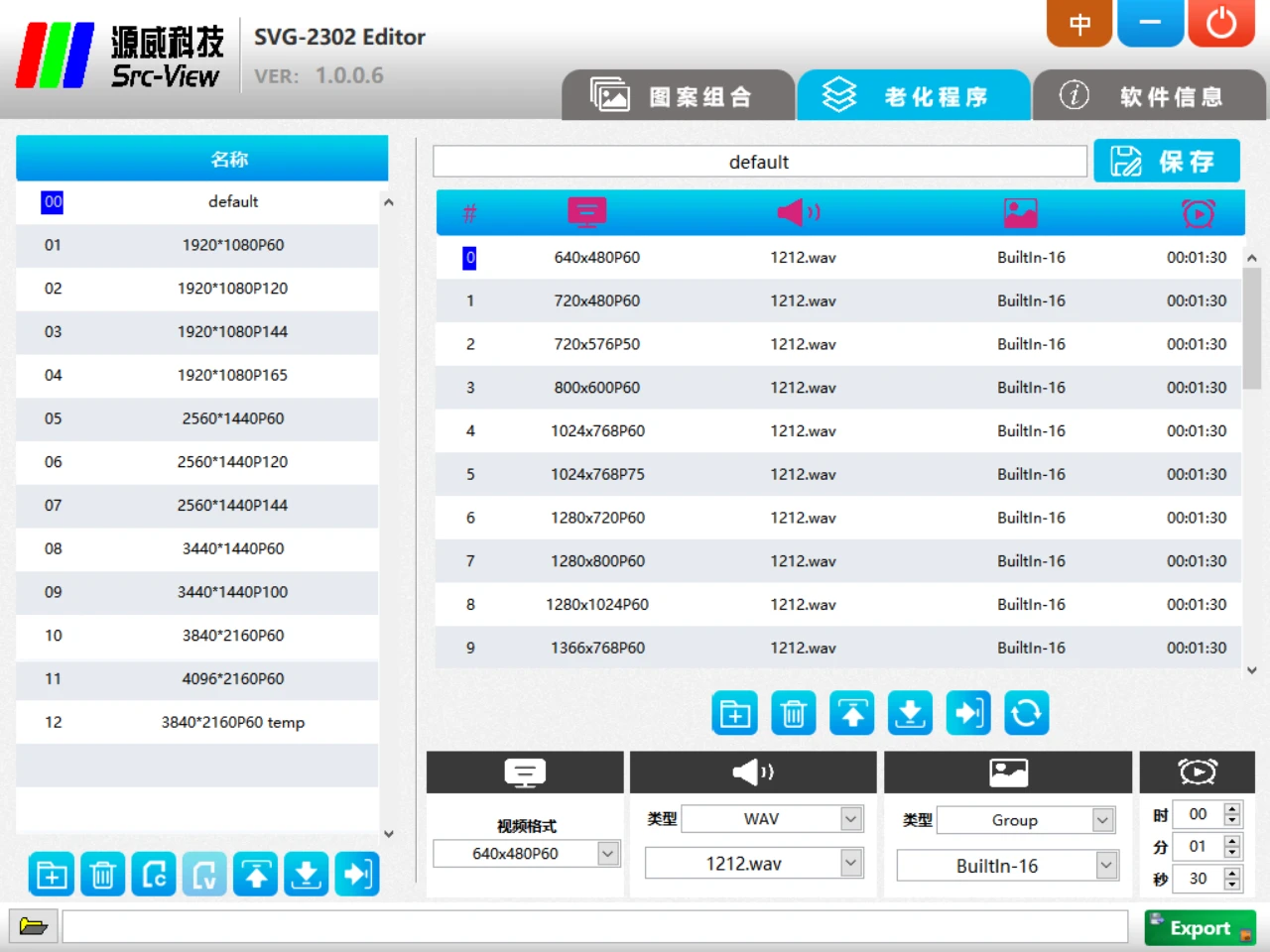

Visual Aging Program Editing: Up to 100 aging programs with 32 steps each; every step independently specifies video format, audio, pattern and duration (hours / minutes / seconds).
Pattern Combination Editing: Freely arrange 100 sets × 16-image pattern combinations; built-in 54+ test patterns and custom TF-card BMP images can be mixed.
One-Click TF Card Export: Programs and pattern combinations are exported to a TF card via Export; the main unit reads and executes them at power-on or reset, and auto-resumes after power loss.
54+ built-in test patterns, expandable via TF card with BMP images and WAV audio

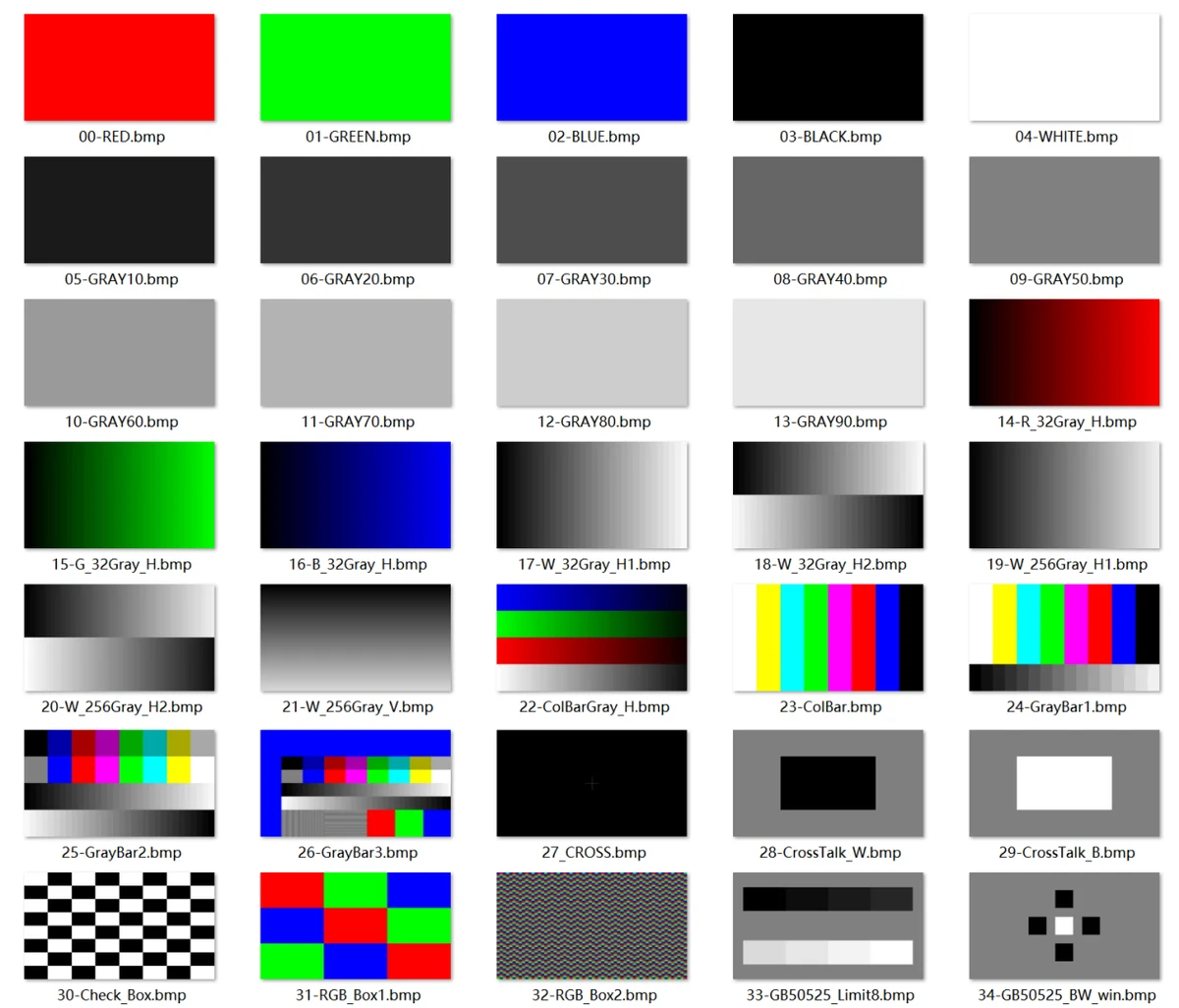

Built-in red, green, blue, black and white solids, 10%–90% grayscale, R / G / B / W grayscale gradients, color bars, checkerboard, composite, cross and crosstalk patterns — covering solid-color aging, grayscale, color and uniformity checks for monitor aging.

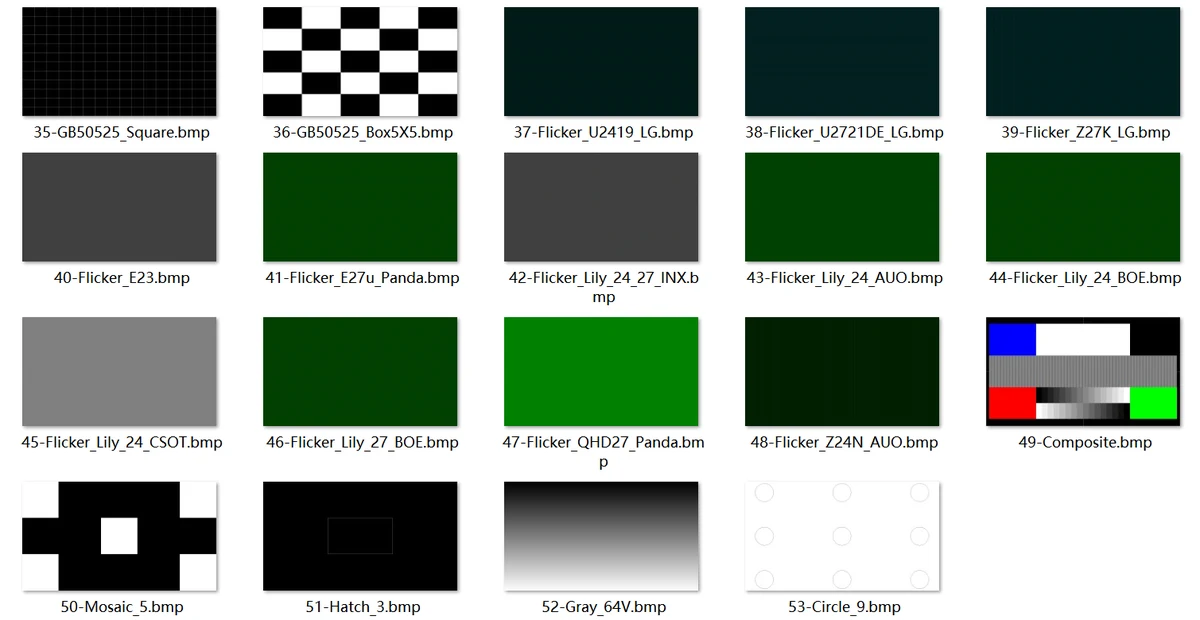

Plus GB50525 grid, 5×5 boxes, Flicker patterns in various sizes, mosaic, diagonal lines, dots and more; users can add 24-bit custom images in resolution-based subfolders of the TF card BMP folder and call them directly in aging steps.
