FCT Functional Testing | Two Boards Simultaneously | Simulated Manual TV Board Testing
The AR-306 FCT functional test system provides automated testing for digital TV mainboards, supporting one-to-two mode — testing two boards automatically at once: an ordinary monitor replaces fixture displays, showing the LVDS image of the board under test in real time; capture and function-simulation modules handle signal acquisition and function simulation; the system tests automatically in the order of user-written procedures — one device equals two operators.
Monitor Replaces Fixture Displays | Signal Capture | Function Simulation | Procedure-Based Automated Testing
Ordinary monitors (1920×1080) replace fixture test displays of various models, showing the LVDS image of the digital TV mainboard under test in real time — saving fixture display resources.
The capture module acquires output signals from the digital TV mainboard under test, including LVDS image capture, VIDEO capture and AUDIO output capture.
The function simulation module emulates functions of the digital TV mainboard under test — IR remote, buttons, ambient light sensing, etc. — simulating manual TV board testing.
The system tests the digital TV mainboard automatically in the order of user-written procedures; results are judged by computer against preset ranges — no human intervention, high consistency, no human misjudgment.
Dual-Board Testing | Pneumatic Fixture | Modular Structure | Full Interface Protection
| Interfaces | V-by-One interface: up to 3840×2160@60, 16-lane 4-section; LVDS interface: up to 1920×1080@60, quad-channel 10-bit; Mini-LVDS interface: 2-bank 6-pairs, 1920×1080@60 (non-standard) |
|---|---|
| Test Scheme | Dual-board simultaneous / single-board testing, fully automatic |
| signal source | Uses an independently developed programmable multi-output video pattern generator for a simpler system structure |
| Optimized Fixture | The fixture frame and needle bed are separable — different models only need a needle-bed swap; pneumatic control reduces labor intensity |
| Resource Saving | Replaces fixture test displays of all models; one-to-two testing — one device equals two operators, saving labor; modular structure for easy upgrades and longer product life |
| Consistency | Results judged by computer against preset ranges — no human intervention, high consistency, no misjudgment |
| Function Expansion | Fully automated testing; I2C programming (reserved); serial programming (reserved) |
| Interface Protection | V-by-One interface protection; LVDS and Mini-LVDS interface protection |

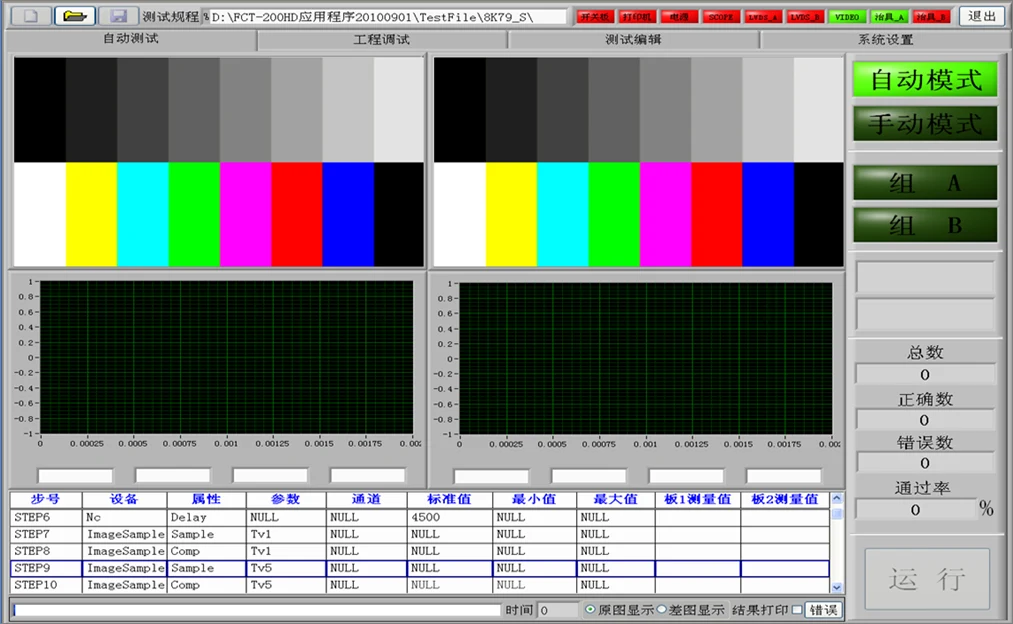

Auto / Manual Modes | Real-Time Dual-Board Images & Waveforms | Test Steps & Measurement List
The AR-306 is discontinued; existing users needing manuals, spare parts or technical support — or anyone needing a similar custom automated test system — are welcome to contact us anytime.
