169-VL Upgrade · Dedicated Signal Source for LCM / T-CON Board Production Testing

209-VL
V-by-One & LVDS signal generator

16-Lane V-by-One · 4K@120Hz | 4-Channel LVDS · 1080P@120Hz | Flicker Adjustment

An upgrade of the 169-VL, developed for TV LCM and T-CON board production testing. Newly added Flicker (VCOM) adjustment; standard split-type RMT-20 control box; output interfaces feature quadruple protection (over-voltage / over-current / under-voltage / no-load); the whole test requires only 3 buttons — simple, easy, stable and reliable.

16 LaneV-by-One Output
3840×2160120Hz Ultra-HD
99 SetsModule Parameter Presets
54+ PatternsBuilt-In Test Patterns
209-VL Signal Generator
SCROLL
4K@120HzMax Output Capability
Quadruple ProtectionOver-Voltage / Under-Voltage / Over-Current / No-Load
Flicker AdjustmentVCOM Voltage Fine-Tuning and Writing
7+ Major MakersSuccess Stories at Leading Module Makers
PRODUCT FEATURES

209-VL Features

An upgraded professional LCM pattern test instrument based on the 169-VL — with new flicker adjustment and smoother operation

📺

Dual-Interface High-Speed Output

Up to 16-lane V-by-One (3840×2160/120Hz) or 4-channel LVDS (1920×1080/120Hz) — one instrument covers both mainstream interfaces.

🌗

Flicker (VCOM) Adjustment

I2C-based VCOM voltage adjustment; the control box offers +5 / -5 / +1 / -1 four-key fine-tuning, and the OK key writes the value to the panel T-CON board memory in one step.

🛡️

Quadruple Hardware Protection

All output signals have protection circuits; panel power and backlight power feature configurable over-voltage, under-voltage, over-current and no-load protection, preventing damage to the instrument and the panel under test.

🎛️

Split-Type Control Box

The standard RMT-20 external control box sits separately from the main unit for flexible line placement; frequently used keys are mechanical keys rated for millions of presses.

🖼️

Rich Test Pattern Library

54+ built-in common test patterns, unlimited external images via SD card; up to 32 patterns per module parameter set, with auto-play and per-image duration settings.

⚡

Instant On & Fixture Integration

Ready instantly at power-on — no boot wait. 99 preset module parameter sets; switching lines or panels means just switching a parameter number. The RS-232 port supports fixture travel switches — press down to turn on the signal, lift to turn it off.

SPECIFICATIONS

Technical Specifications

Detailed electrical and functional parameters for all kinds of production-line pattern testing

V-by-One Signal 1 / 2 / 4 / 8 / 16 Lane Division 1 / 2 / 4 8bit / 10bit JEIDA Up to 4096×2160@120Hz
LVDS Signal Single / Dual / Quad Channel Division 1 / 2 / 4 6 / 8 / 10bit JEIDA / VESA Up to 1920×1080@120Hz
Flicker Adjustment I2C-based VCOM voltage adjustment (customer provides the I2C protocol for VCOM adjustment); the VCOM value can be written to the panel’s non-volatile memory
Control Signals 4-channel configurable logic-level outputs (Dout1–Dout4, BL_ADJ (PWM), BL_ONOFF, 0–3.3V)
Power Signals T-CON power LVDSVCC: 3.3V–13.5V output; max current 2.5A with current measurement (5mA accuracy); configurable over-voltage / under-voltage / over-current / no-load protection
Backlight Signals BL_VCC (backlight power), BL_ADJ (backlight adjustment), BL_ONOFF (backlight on/off); 3.3V–12V / max 2.5A, also with current measurement and quadruple protection
Power Sequencing Controlled items: LVDSVCC, BLVCC, LVDS or V-by-One signals, control outputs; interval 5mS–500mS, accuracy 5mS
Storage SD card (FAT32, max 32GB, 16GB included) stores module parameter files and test images; up to 99 module parameter sets, 32 test patterns each
Unit Specifications Dimensions 350 × 350 × 180 mm (with packaging); weight approx. 3.6 kg (with packaging); power AC 220V (200–240V) 50/60Hz; operating temperature 0°C to +40°C
Operation Split-type RMT-20 control box (standard, connected via DB15 cable); testing requires just 3 buttons — signal on/off, previous, next; plus VCOM adjustment and auto-play keys
Standard Accessories RMT-20 control box, 16GB SD card, national-standard power cord, DB15 cable, universal LVDS adapter board (8762-V1), 50-wire LVDS ribbon cable, 51PIN / 41PIN V-by-One adapter boards and short cables (more adapter boards and cables available on request)
INTERFACES

Interface Overview

Main unit front panel, rear panel and RMT-20 control box layout at a glance

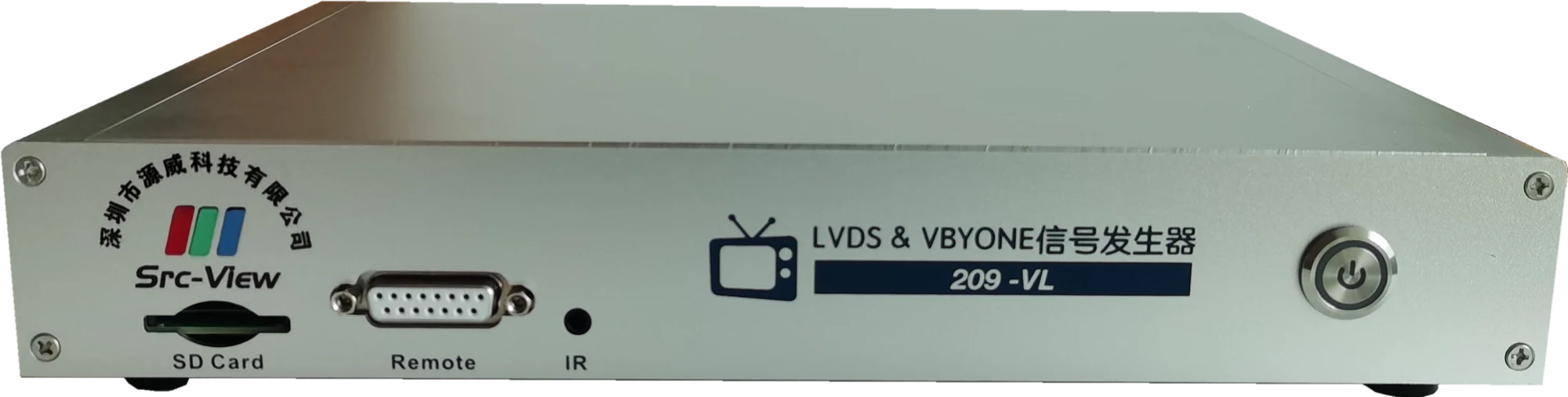

Main Unit Front Panel

Power Switch · SD Card · Control Box Interface · IR Receiver
209-VL front panel
Power switchSD card slotRemote control box interface (DB15)IR receiver

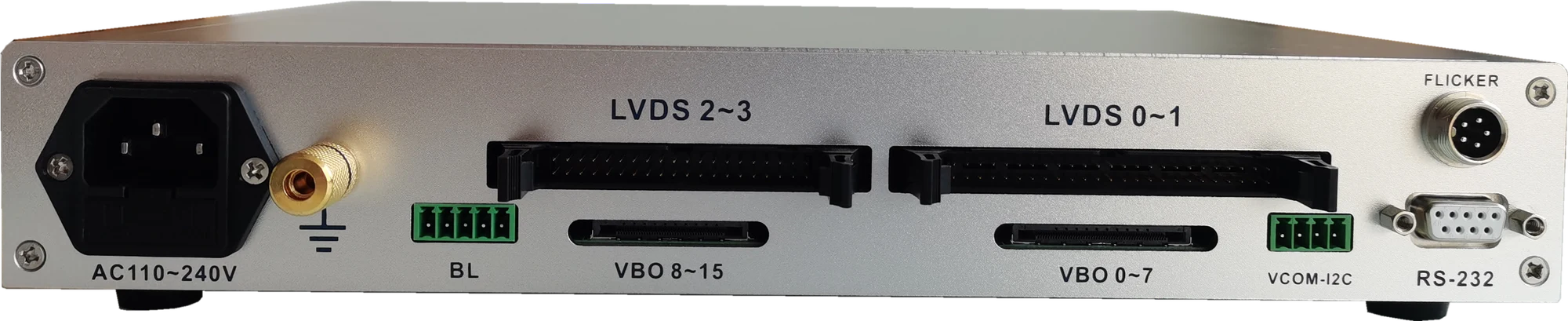

Main Unit — Rear Panel

16-lane V-by-One + 4-channel LVDS + Flicker adjustment interface
209-VL rear panel
AC 110–240V powerProtective Ground TerminalBL backlight interfaceLVDS 2~3LVDS 0~1VBO 8~15VBO 0~7VCOM-I2CFLICKER interfaceRS-232 control port

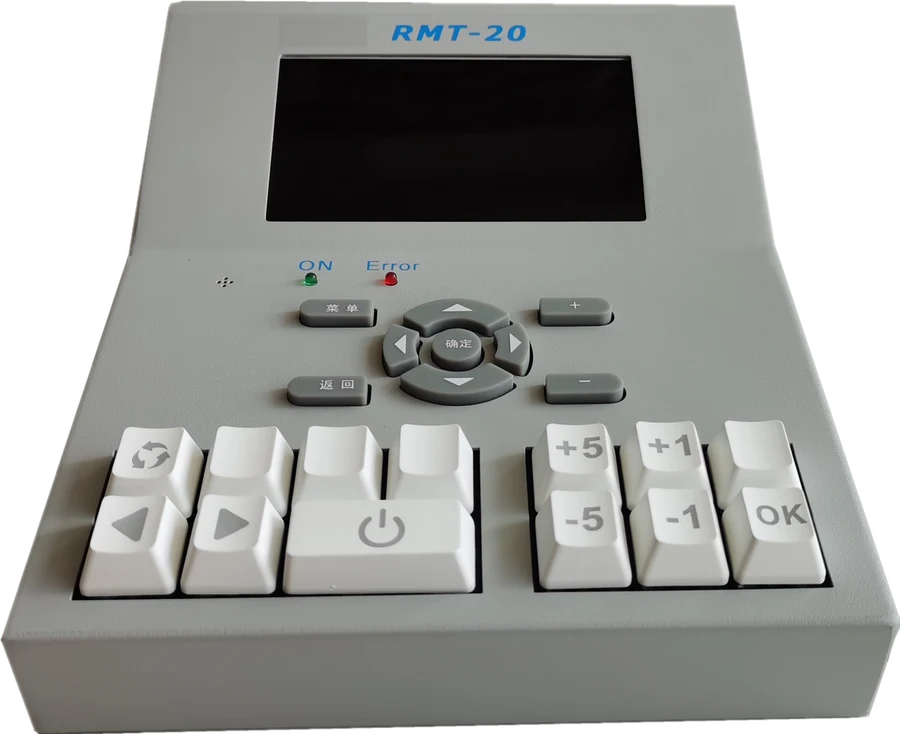

RMT-20 external control box

Standard: RMT-20 Split-Type Control Box

Connects to the main unit via DB15 cable, with its own display and parameter menu. The "⏻" key controls the signal, "◀" "▶" keys switch test patterns, with an additional auto-play toggle; VCOM +5 / -5 / +1 / -1 keys fine-tune flicker, and the OK key saves. Frequently used keys are mechanical keys rated for millions of presses — built to last.

WORKFLOW

Quick Operation Guide

Complete pattern testing in a few simple steps

Change Panel Return to step ③ "Connect Panel Cables" and repeat testing 1 Power On Insert SD card and power on, parameters load automatically 2 Set Parameters Select power / panel / pattern per datasheet Hold menu 2s to enter, arrows to switch 3 Connect Panel Cables Select adapter board per T-CON definition Plug/unplug cables only with signal off 4 Signal On Control box "⏻" key 5 Visual Inspection QC visual / machine vision inspection 6 Switch Patterns Next: "▶" key Previous: "◀" key or auto-play with frame-lock timer 7 Signal Off Control box "⏻" key 8 Disconnect Cables Plug/unplug only with signal off
TEST PATTERNS

209-VL Built-In Test Patterns

Covering grayscale, color bar, checkerboard, flicker, crosstalk and other common production-line test screens

54
Built-In Common Test Patterns

Including Flicker adjustment patterns, ready at power-on

∞
Unlimited External Patterns

Just place them in the SD card "BMP" folder

32
32 Patterns per Parameter Set

Combine test screens as needed

▶
Auto-Play

Per-image duration set independently, 0.5S–20S

⇄
Dynamic Screen

Grayscale background + vertical scrolling bar

Built-In Test Pattern Gallery

Thumbnail previews of selected built-in test patterns (54+ in total)
Red 256-level grayscale (horizontal)
Green 256-level grayscale (horizontal)
Blue 256-level grayscale (horizontal)
White 32-level grayscale 1 (horizontal)
White 32-level grayscale 2 (horizontal)
White 256-level grayscale (horizontal)
White 256-level grayscale (vertical)
RGBW 256-level grayscale (horizontal)
RGBW 256-level grayscale (vertical)
Vertical 256-level grayscale WRGB
Color bar test pattern
Grayscale bar test pattern
Crosshair test pattern
Cross screen test pattern
WRGB color test pattern
Comprehensive test pattern
Line-interlaced 3D test pattern
Frame-interlaced 3D test pattern
Red square test pattern
Green square test pattern
Blue square test pattern
Scrolling screen
CSOT screen
AUO screen
Checkerboard test pattern
Diagonal line test pattern
Left-scrolling screen
Down-scrolling screen
Mosaic 8×6
Mosaic 8×8
Crosstalk test pattern 1
Crosstalk test pattern 2
WHY 209-VL

209-VL vs TV Motherboard Pattern Testing

A full comparison of pattern-testing solutions for LCM production lines — professional instruments win across the board

Item209-VL Professional Signal GeneratorOrdinary TV Motherboard
Versatility ✓Purpose-built for LCM production-line pattern testing, compatible with all LVDS and V-by-One panels ✗One TV board only drives its matching panel — changing glass means changing the board
Reliability ✓All interface signals have protection circuits; T-CON power features over-voltage, under-voltage, over-current and no-load protection ✗No protection — easily damaged
Efficiency ✓Instant on at power-up, highly efficient ✗Must wait for the TV board to fully boot; some boot very slowly
Operability ✓Signal on/off and pattern switching with just 3 buttons ✗Must switch to the USB channel via remote first, then play USB images
Cost-Effectiveness ✓Designed service life of 5–10 years — better long-term value ✗Frequent damage or even scrapping — higher overall cost
Special Requirements ✓Independently developed — customization available for special panel-inspection processes ✗Cannot be met
Industry Trend ✓Major brand LCM manufacturers all use professional instruments for pattern testing —
Success Stories ✓Skyworth, Changhong, Innolux, AUO, Panda, BOE, TCL CSOT —

The Common Choice of Many Leading LCM Manufacturers

TROUBLESHOOTING

Troubleshooting

Quick ways to locate pattern-testing issues

  • Check that the correct cables are used;
  • Check that the correct power parameters and panel parameters are selected;
  • Turn on the output signal and check whether VCC current is normal — very low current or NCP usually indicates a cable error, or possibly wrong power parameters.
  • Check that cables and timing parameters are correct and that the signal generator resolution matches the panel;
  • LVDS signal: check that the JEIDA / VESA format selection is correct;
  • Check the bit-width selection: LVDS with 5 differential pairs per channel (including clock) is 8-bit, 6 pairs is 10-bit; V-by-One is usually 10-bit;
  • V-by-One signal: check the SECTION parameter (8-lane: 1SEC / 2SEC; 16-lane: 1SEC / 2SEC / 4SEC).
  • Switch the "Flicker" parameter to the one matching the current LCM, and switch to the Flicker test pattern;
  • Press the +5 / -5 / +1 / -1 keys on the control box to adjust the VCOM value while observing flicker changes;
  • Once optimal, press the "OK" key to write the VCOM value to the panel T-CON board memory; "OK" displayed means success.
